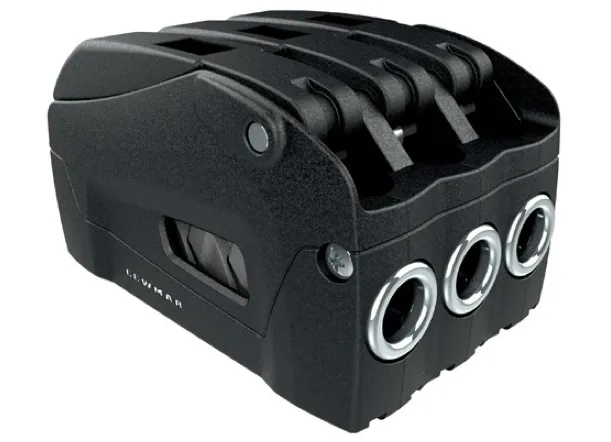

Product Details

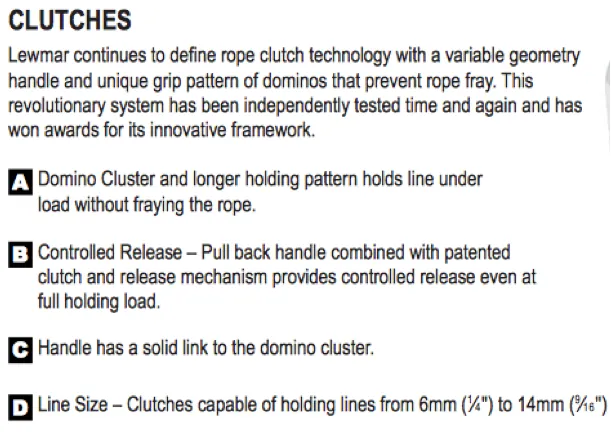

+Lewmar continues to define rope clutch technology with a variable geometry handle and unique grip pattern of dominos that prevent rope fray. This revolutionary system has been independently tested time and again and has won awards for its innovative framework.

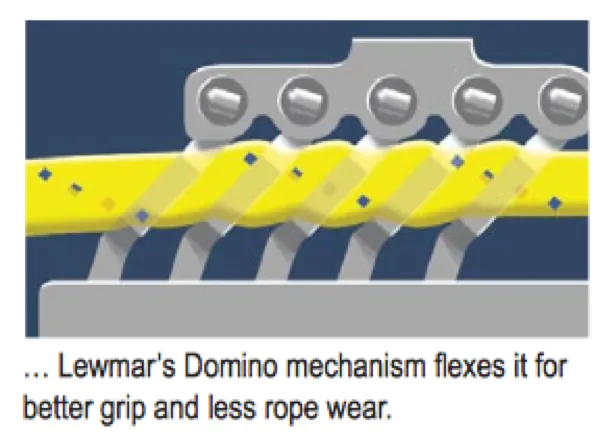

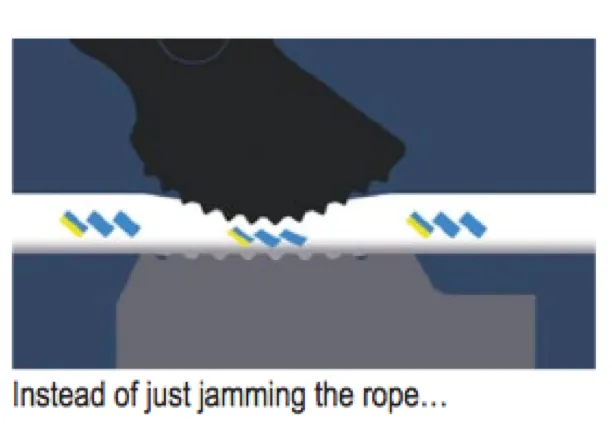

Domino Cluster and longer holding pattern holds line underload without fraying the rope.

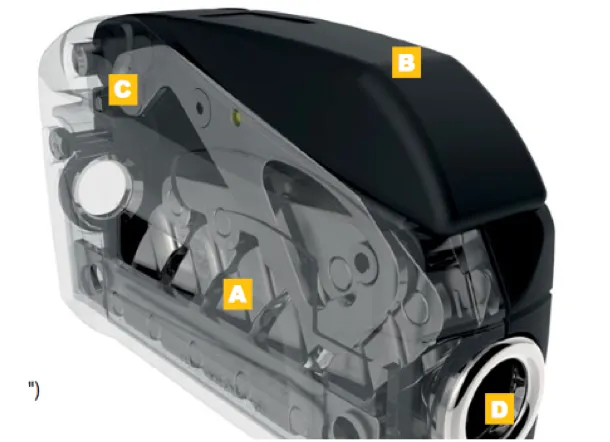

Controlled Release – Pull back handle combined with patentedclutch and release mechanism provides controlled release even at full holding load. Handle has a solid link to the domino cluster.
Line Size –DC2 Clutches capable of holding lines from 8mm ( 5⁄16) to 14mm (9⁄16)

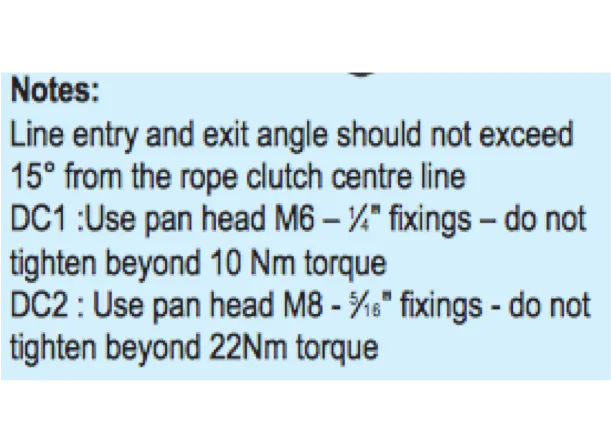

Note
- Line entry and exit angle should not exceed 15° from the rope clutch centre line
- DC2 : Use pan head M8 - 5⁄16" fixings - do not tighten beyond 22Nm torque

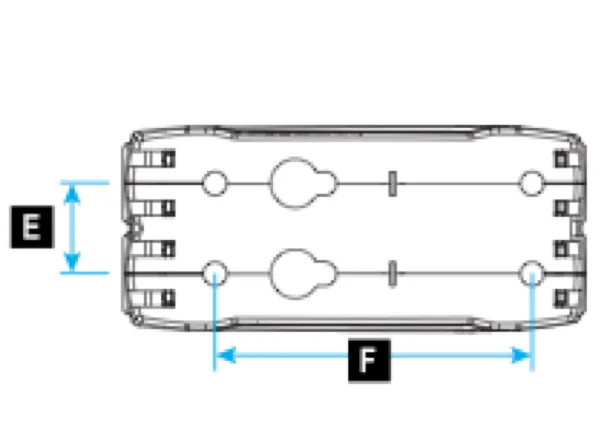

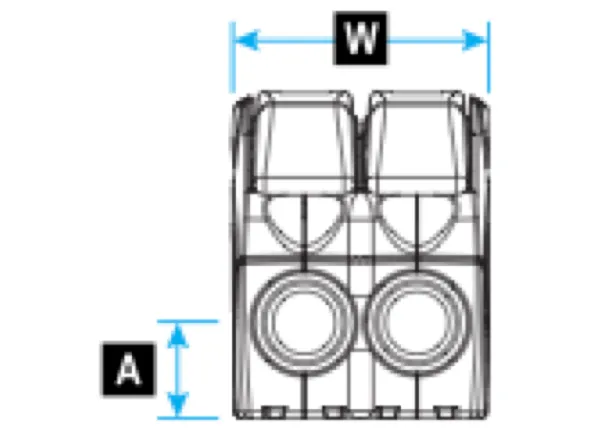

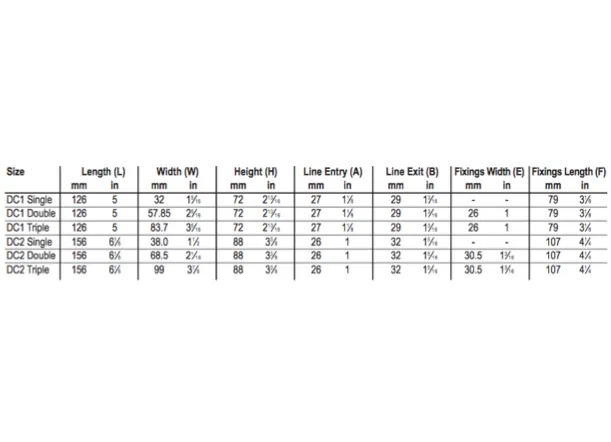

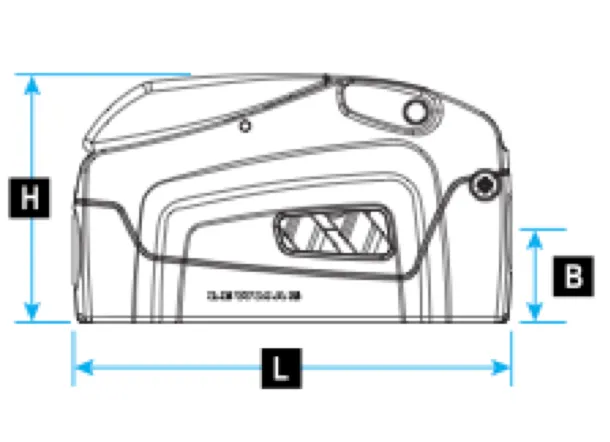

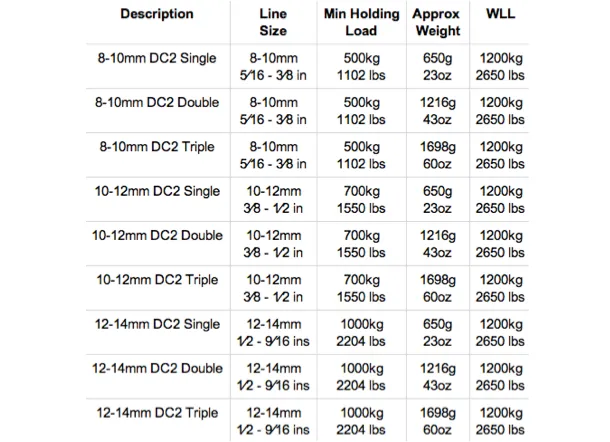

Specification
- See attached image

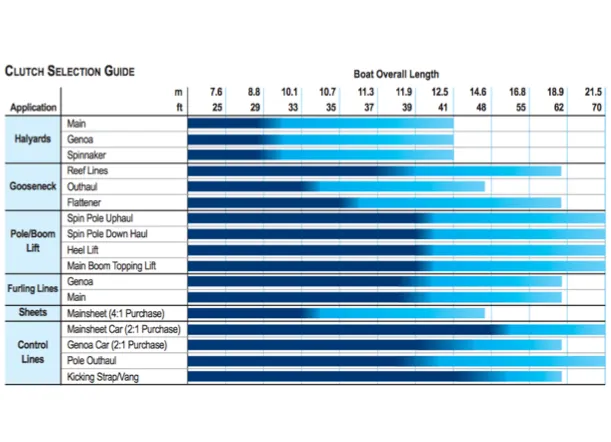

Clutch Selection Guide
- See attached images
Models
- DC2 Rope Clutch Triple 8-10mm Rope
- DC2 Rope Clutch Triple 10-12mm Rope
- DC2 Rope Clutch Triple 12-14mm Rope
